Non-metal Ultrasonic Tester TC700
重量
kg
库存
隐藏域元素占位
- Product Detail

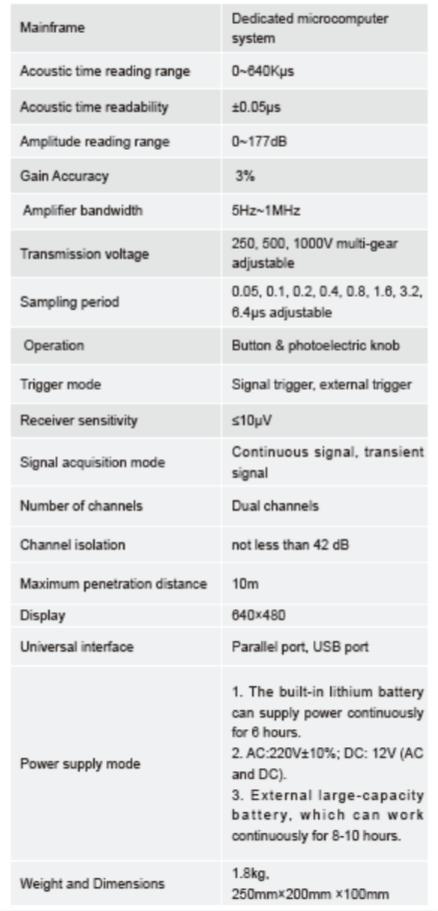

- Specifications
- Videos
-
- Commodity name: Non-metal Ultrasonic Tester TC700
Functions
●Detection of internal defects and crack depth, homogeneity, and thickness of damaged layers in concrete structures
●Concrete strength testing
●Concrete Pile Integrity Inspection (Manual)
●Concrete thickness inspectionFeatures
●Dual-channel real-time dynamic waveform display, screen refresh rate of more than 30 frames per second
● Automatic interpretation of acoustic parameters (sound time, amplitude, frequency fully automatic)
● High receiving sensitivity, large penetration distance (up to 10 meters in concrete)
● Portable one-body structure suitable for use on engineering sites
● AC and DC power supply, DC power supply can work continuously for more than 8-10 hours
● Data analysis and processing software complies with current specifications
●Extended functions: It can be expanded to impact echo concrete thickness tester, rock mass parameter determination, and concrete-filled steel tube test. -
