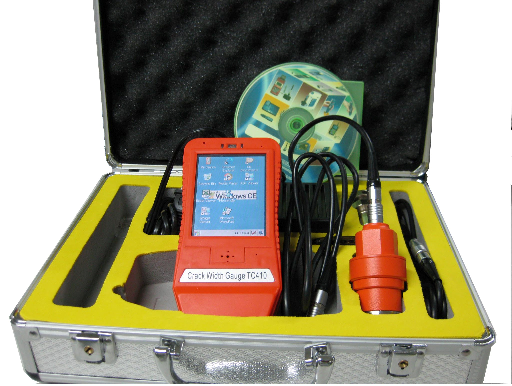

Crack Width Gauge TC410

零售价

$ 0

市场价

$ 0

TC410 is widely used for non-destructive testing of the crack width of bridges, tunnels, constructions and such concrete structures. During the detection, the system takes the image of crack automatically and displays real-time image and width data of cracks. The image data can be saved automatically.

I want to make an inquiry

重量

0

Quantity
-
+

库存

隐藏域元素占位

  • Product Detail
  • Specifications
  • Videos
    • Commodity name: Crack Width Gauge TC410
    • Commodity ID: 1105904221392883712

    TC410 is widely used for non-destructive testing of the crack width of bridges, tunnels, constructions and such concrete structures. During the detection, the system takes the image of crack automatically and displays real-time image and width data of cracks. The image data can be saved automatically.

    Features

     The PDA design with data acquisition probe

     Automatic image recognition and intelligent width calculation technique

     Quick measurement without any adjustment

     Large screen of PDA for the more accurate and clear image

     Image file can be saved in JPEG format

     Powerful processing software can be able to save and analyses image and data



    Standard Delivery



    PDA main unit

    1

    Transducer

    1

    Software

    1

    Signal cable

    1

    USB cable

    1

    Universal coupling

    1

    Extension rod

    1

    SD card reader

    1

    Charger

    1

    TIME certificate

    1

    Warranty card

    1

    Instruction manual

    1






    Key words:
    • Crack Width Gauge
    • non-destructive testing
  • The main probe

    Specialized CMOS camera

    Controller

    PDA

    Display mode

    Automatic calculation, save and display

    Measuring range

    0.01-6.50mm

    Accuracy

    0.02mm

    Magnification

    60 X

    Image formats

    JPEG (Around 10K per image)

    Memory

    Internal memory (SD card extension)

    Interface

    USB 2.0

    Power

    Lithium battery

    Operating temperature

    -10℃~+50℃

    Dimensions

    180mmx100mmx50mm

    Net weight

    1kg



Key words

Crack Width Gauge non-destructive testing
