Metallographic Microscope with Computer TIME-30MW

TIME-30MW is a trinocular inverted metallurgical microscope with computer, which can provide superior image quality and stable performance. The machine is easy to operate and has complete accessories. It is widely used for metallographic analysis and material testing in a variety of industries.

I want to make an inquiry

Product Details

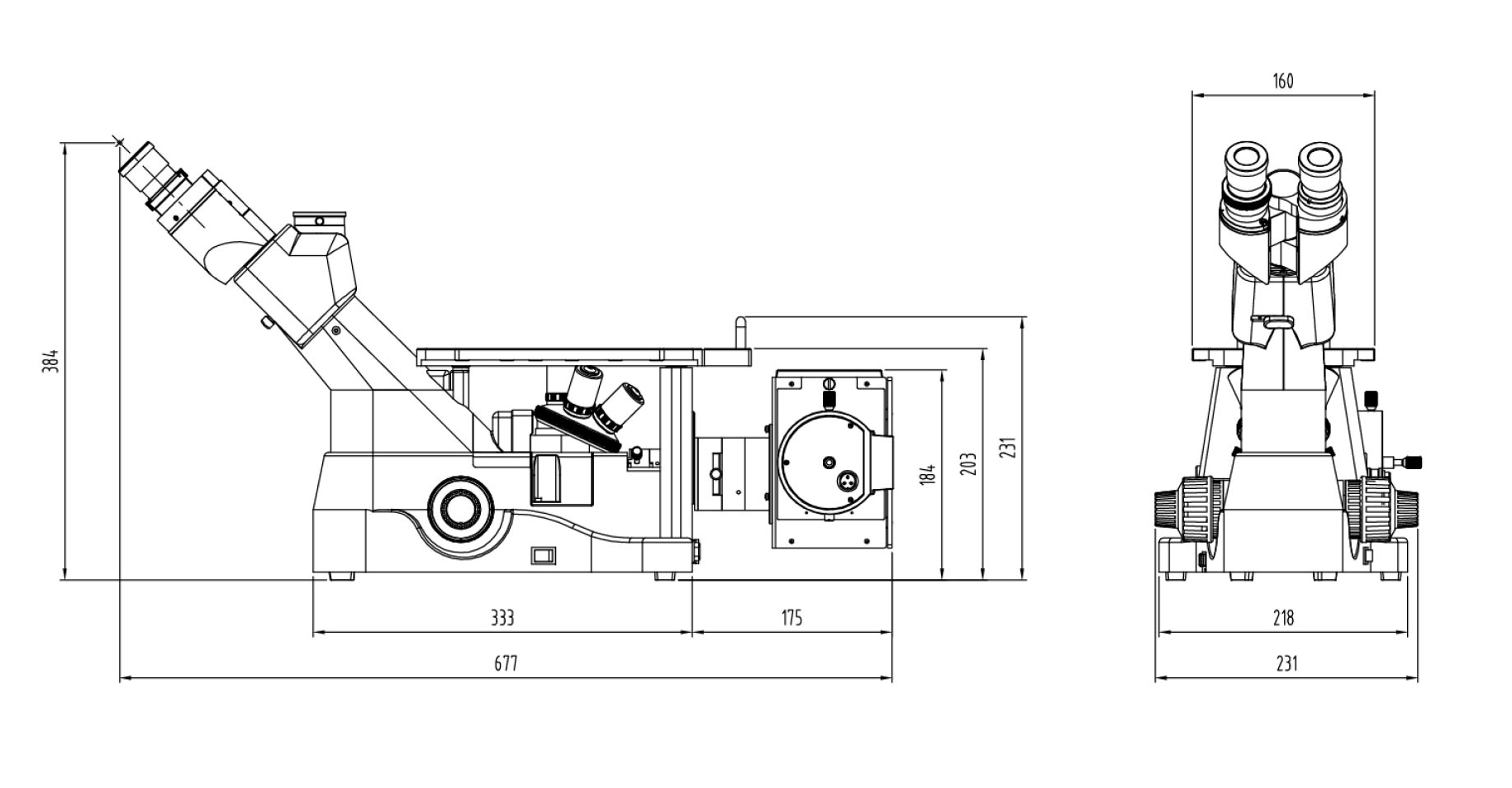

Specifications

Videos

Observation tube

Gemel trinocular, adjustable diopter, 45° inclined, with a digital camera port to shoot photo or video. Capture and save observation images. Image analysis can be realized on the computer through the metallographic analysis software.

Focusing Mechanism

Low hand position coaxial coarse and fine focusing mechanism with tension control and fast focusing random limit device. Coarse adjustment stroke per rotation: 38mm, fine adjustment accuracy: 0.002mm

Stage

The coaxial low-hand position adjustment moving ruler and the stage extension board can be installed to expand the application space and meet the needs of customers with different requirements.

Optical system	Infinity color corrected optical system
Observation tube	Gemel trinocular, 45°inclined, interpupillary distance adjustment: 54-75mm, diopter adjustment ±5, refract rate:binocular 100%, binocular:trinocular=80%:20%
Eyepiece	High eyepoint wide field plan eyepiece PL10X22mm
	High eyepoint wide field plan eyepiece PL10X22mm with cross differentiation ruler	Optional
	High eyepoint wide field plan eyepiece PL10X22mm, adjustable diopter	Optional
	High eyepoint wide field plan eyepiece PL15X/16mm	Optional
Objective (Infinite LWD plan achromatic)	LMPL5X /0.15 WD10.8mm
	LMPL10X/0.3 WD10mm
	LMPL20X/0.45 WD4mm
	LMPL50X/0.55 WD7.8mm
	LMPL100X/0.80 WD2.1mm	Optional
Nosepiece	5-position nosepiece
Focusing	Coaxial coarse and fine focusing mechanism，coarse range of 38mm per rotation, fine adjustment of 0.2 mm per rotation, adjustment accuracy: 0.002mm，with coarse tension adjustment device
Focusing	Fixed stage size: 160X250mm
Plate	Metal plate (center hole Φ12 mm)
	Metal plate (center hole Φ25 mm)	Optional
	Mechanical moving ruler, moving range: 120(X)*78(Y)mm
	Stage extension board
Reflective illumination system	Reflection Koehler illuminator, with iris diaphragm and center adjustable filed diaphragm, wide voltage 90-240V, 12V/50W halogen bulb, center adjustable, light intensity continuously adjustable
Polarizing kit	Analyzer: 360 °rotating; both the polarizer and the analyzer can move out of the light path
Color filters	Green color filter, blue color filter (Φ32mm)
Metallographic analysis software	FMIA2020 Metallographic analysis software; Sony chip 5 million camera device, 0.5X adapter lens interface, micrometer
Computer	HP business PC	Optional
