Automatic Rockwell & Superficial Hardness Tester TIME6166/6167/6168

零售价

$ 0

市场价

$ 0

TIME6166/6167/6168 Rockwell hardness tester is an upgraded product of TH300/TH320. It adopts the 5.7-inch TFT touch screen and advanced intuitive UI design. The test force is automatically switched. The residual depth h is directly displayed according to the requirements of CANS and Nadcap certification. The test data can be exported to a U disk or an external printer for printing. It also supports data output to a PC with our software for data analysis.

I want to make an inquiry

重量

0

kg

Quantity
-
+

库存

0

隐藏域元素占位

  • Product Detail
  • Specifications
  • Videos
    • Commodity name: Automatic Rockwell & Superficial Hardness Tester TIME6166/6167/6168
    • Commodity ID: 1105903783708872704

    TIME6166/6167/6168 Rockwell hardness tester is an upgraded product of TH300/TH320. It adopts the 5.7-inch TFT touch screen and advanced intuitive UI design. The test force is automatically switched. The residual depth h is directly displayed according to the requirements of CANS and Nadcap certification. The test data can be exported to a U disk or an external printer for printing. It also supports data output to a PC with our software for data analysis.

    ●TIME6166 Rockwell Hardness Tester
      TIME6167 Superficial Rockwell Hardness Tester
      TIME6168 Rockwell & Superficial Rockwell Hardness Tester
    ●Conversion of common hardness scales (HLD, HV, HB) & Conversion of Tensile Strength, up to 15/30 kinds of Rockwell hardness scales.
    ●Automatic test process.
    ●Dolphin nose indenter can measure workpieces that cannot be measured by conventional models such as circular, tubular, and stepped samples.
    ●The high-strength cast aluminum alloy body ensures the accuracy of the equipment and is durable.
    ●The lead screw adopts special material modulation processing, and the lifting is stable and reliable.
    ●The large disc handle is ergonomically designed and can clamp the specimen more conveniently, quickly and stably.
    ●Large test space: 260mm in the vertical direction and 150mm in the horizontal direction.
    ●Intuitive UI and interactive design are adopted, which perfectly fits human intuitional thinking and avoid the trouble of reading manuals.
    ●The 5.7-inch TFT touch screen clearly displays the test results including the current scale, test force, pressure,maximum value, minimum value, average value, repeatability, strength conversion, hardness conversion,current operation prompts and upper and lower limits
    ●The initial test force, total test force, and elastic recovery retention time can be set, which are in line with the latest standards of GB/T230-2018, ISO6508, ASTME18.
    ●The test force and the scale are automatically switched, and automatic reset after power failure.
    ●With the LVDT sensor, the resolution is increased to 0.01HR, and the residual depth value is innovatively added (range: 10~700μm)
    ●Data output to U disk, micro printer, or computer for data processing and printing.

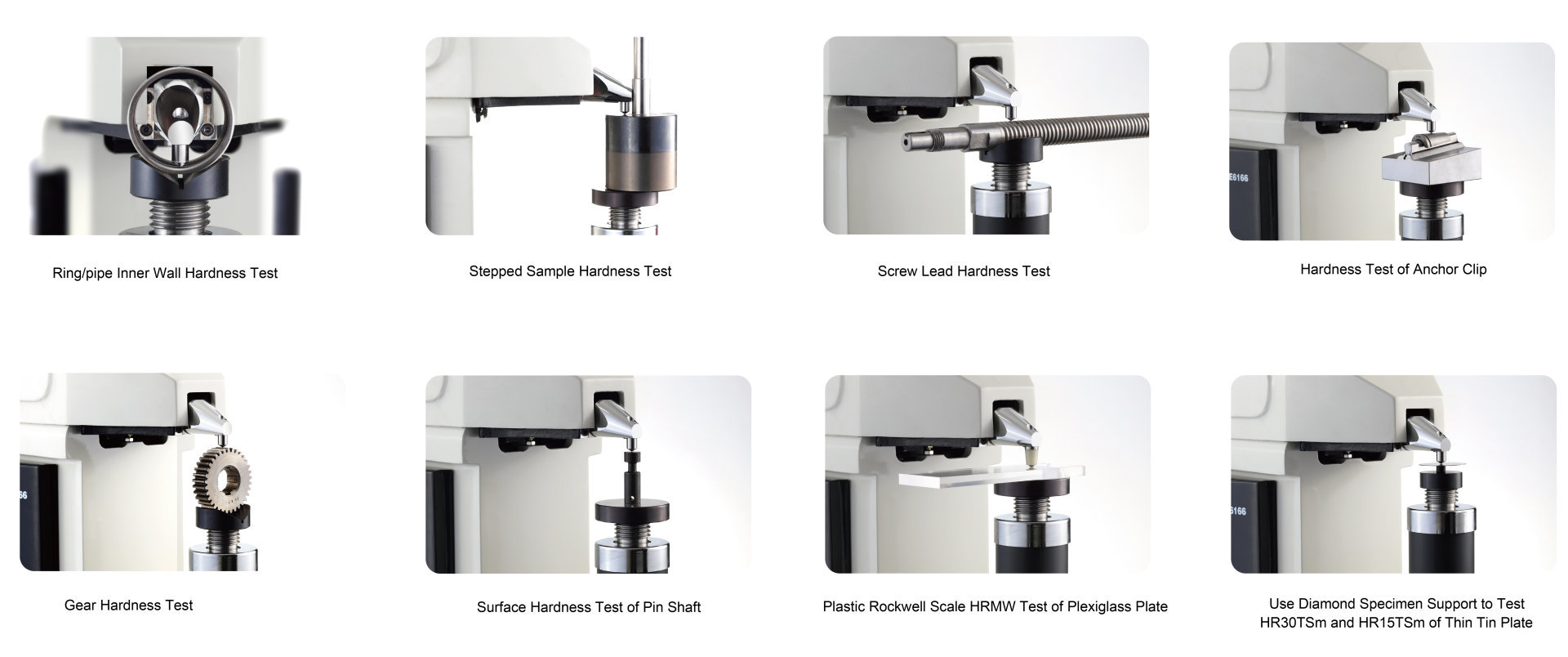

      Applications

    Download: TIME6166/6167/6168 Brochure

    Key words:
    • Rockwell hardness tester
    • Superficial Rockwell Hardness Tester
  • Model

    TIME6166

    TIME6167

    TIME6168

    Hardness scales

    HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRLW, HRMW, HRPW, HRRW, HRSW, HRVW

    HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15WW, HR30WW, HR45WW, HR15XW,

    HR30XW, HR45XW, HR15YW, HR30YW, HR45YW

    HRA, HRBW, HRC, HRD, HREW,

    HRFW, HRGW, HRHW, HRKW,

    HRLW, HRMW, HRPW, HRRW,

    HRSW, HRVW, HR15N, HR30N,

    HR45N, HR15TW, HR30TW,

    HR45TW, HR15WW, HR30WW,

    HR45WW, HR15XW, HR30XW,

    HR45XW, HR15YW, HR30YW,

    HR45YW

    Resolution

    0.1/0.01 Rockwell unit

    Pre-load

    98.07N/10kgf

    29.42N/3kgf

    29.42N/3kgf, 98.07N/10kgf

    Total load

    588.4N/60kgf, 980.7N/100kgf, 1471N/150kgf

    147.1N/15kgf,

    294.2N/30kgf,

    441.3N/45kgf

    147.1N/15kgf, 294.2N/30kgf,

    441.3N/45kgf, 588.4N/60kgf,

    980.7N/100kgf, 1471N/150kgf

    Test load type

    weights, automatically switch, automatically reset after power failure

    Display

    5.7-inch TFT touch screen; intuitive UI and interactive design

    Residual depth range (h)

    10~700μm, real-time display

    Dwell time

    1-99 seconds

    Standards

    GB/T230-2018, ISO6508, ASTM E18, BSEN10109, ASTM E140, ASTM A370

    Testing space

    Vertical: 260mm, horizontal:150mm

    Work piece types

    flat surface; cylindrical surface, minimum outer diameter 3mm; inner ring surface, minimum inner diameter 23mm.

    Storage

    ≥1500 groups

    Power supply

    220V/110V, 50Hz, 4A

    Dimensions (mm)

    715×230×870

    Weight (kg)

    100

    90

    120
