Smart Leeb Hardness Tester TIME5370 Cloud Measurement
Page view:

Smart Leeb Hardness Tester TIME5370 Cloud Measurement

TIME Cloud Platform Leeb Hardness Tester TIME5370 Was Officially Launched. Automatic recording, real-time sharing, convenient service, opening a new era of smart testing. Data sharing anytime anywhere. Automatically record measurement data. Facilitate the traceability of quality control process. IP54 protection. One-key calling, quick submission of reports, service by your side.
没有此类产品
I want to make an inquiry
Product Details
Specifications
Videos

●The smart probe can test Leeb hardness by connecting to a mobile phone (currently limited to Android), and the two are connected wirelessly via Bluetooth
●The hardness value measured by the smart probe can be wirelessly transmitted to the smart phone in real time through the APP "TIME Smart Test"
●The smart probe has good portability, small size, with a lanyard.
●The smart probe uses a built-in rechargeable lithium battery, which can be charged wirelessly.
●The dustproof and waterproof grade of the smart probe reaches IP54, which can adapt to the harsh environment.
●Automatically identify the impact directions.
●The upper and lower limits of the hardness value can be set in advance, and alarm when out of the limits, which is convenient for batch test.
●With self-define material function, users can generate exclusive hardness conversion table through comparison test.

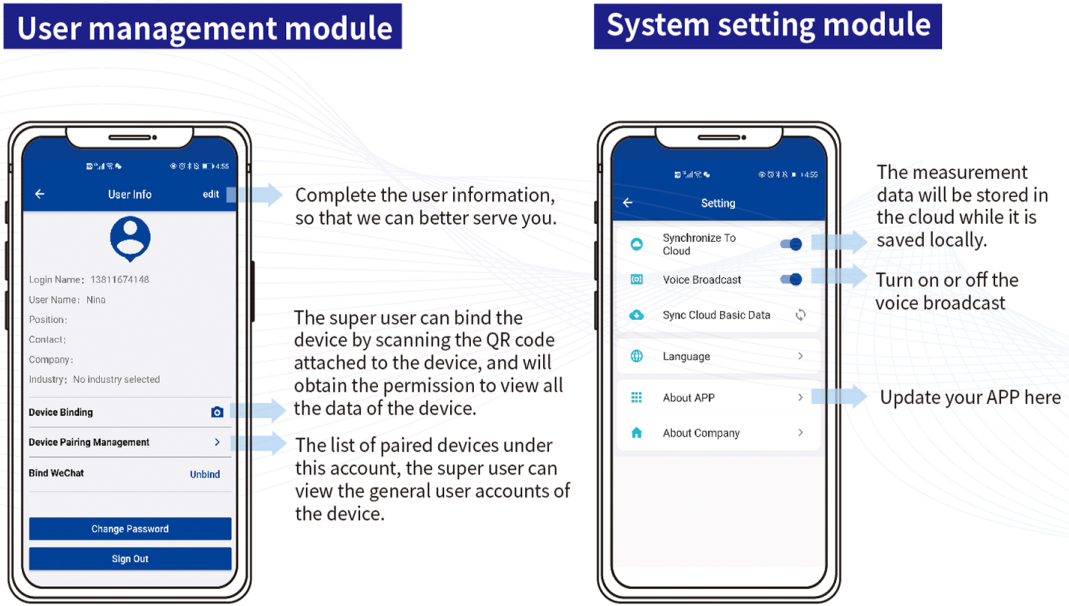

●Measurement records can add multiple types of additional information such as pictures, videos, and positioning.

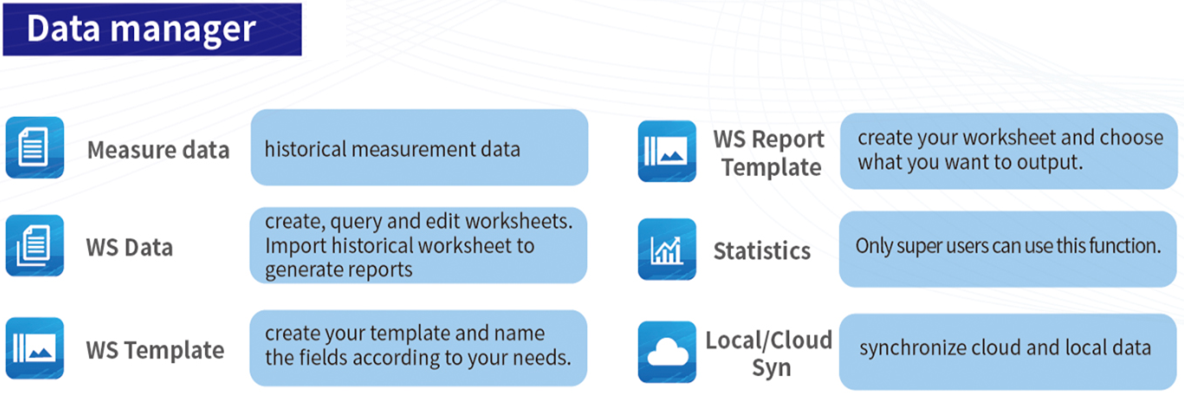

●It can realize rich post-data processing, such as cloud storage, customized work sheets, real-time data sharing, report generation, etc.
●With automatic shutdown function, and the duration of automatic shutdown can be adjusted or closed.
●The software of the smart probe can be upgraded remotely.
●Smart phones can be connected to the TIME Internet of Things platform to achieve richer functions.



More: TIME5370 Brochure Download

Corresponding parameter set not found, please add it in property template of background

Measuring range

(170-960)HLD

Hardness scale

HL, HB, HRB, HRC, HRA, HV, HS

Measuring direction

360°

Tolerance

±6HLD(when HLD=760±30)

Repeatability

6HLD(when HLD=760±30)

Interface

Bluetooth 4.2

Continuous working time

8 hours

Power supply

6V/500mA

Humidity

≤90%

Operating temperature

0~40

Dimensions (mm)

158×40×25

Weight (g)

85



Standard Delivery

●Smart probe

●Support ring

●Cleaning brush

●Wireless charger

●Lanyard

●TIME certificate

●Warranty card

●Instruction manual



Optional Accessory

●Smart phone

●Leeb test block (high value)



Technical Specification for Smart Phone

Size

118X59.5X22.5mm(LWH)

Weight

188g

Resolution

3.0 TFT 360X640

Hardware platform

MT6739V 1.3GHz Quad core

Camera

13MP Rear +5MP Front

Software

Android 8.1

Battery

3700mAh

Charging time

3 hours

Waterproof level

IP68

Memory

3GB+32GB

Single SIM/Storage card

Micro SIM/ maximum 2TB SD card

Network

4G

Precise dual-mode positioning

GPS+BDS/GLONASS

Customize key functions

POC intercom, positioning, one-click access to designated APK, etc.

PoC public network intercom

Support global one-key communication

Black screen one-key intercom

Woofer

Double noise-cancelling microphones, big speakers

Flashlight

Yes
