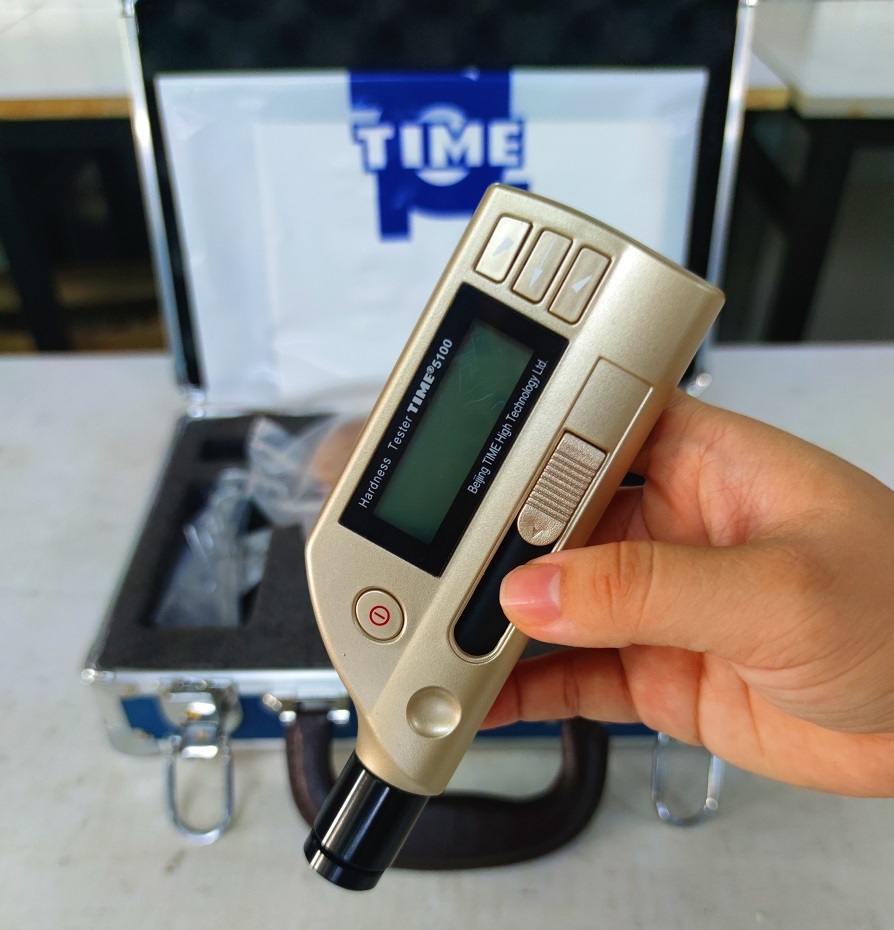

TIME5100 Leeb hardness tester is a versatile and user-friendly device used to measure the hardness of various materials. Whether you are a professional in the field of metallurgy or a quality control technician, understanding how to use this hardness tester is essential. In this article, we will guide you through the step-by-step process of using the TIME5100 Leeb hardness tester effectively.



Step 1: Familiarize Yourself with the Device

Before using the TIME5100 Leeb hardness tester, it is crucial to familiarize yourself with its components and features. The device typically consists of a main body, an impact device, a display screen, and control buttons. Additionally, ensure that the device is fully charged or connected to a power source for accurate measurements.



Step 2: Select the Impact Device

The TIME5100 Leeb hardness tester offers various impact devices to accommodate different testing requirements. Depending on the material's size, shape, and accessibility, choose the appropriate impact device. The impact device should be securely attached to the main body of the hardness tester.



Step 3: Calibrate the Hardness Tester

Calibration is essential to ensure accurate hardness measurements. The TIME5100 Leeb hardness tester comes with a calibration block or reference material. Place the calibration block on a stable surface and select the appropriate calibration mode on the device. Follow the instructions provided by the manufacturer to calibrate the hardness tester correctly.



Step 4: Prepare the Test Surface

Clean the surface of the material to be tested to remove any dirt, oil, or debris. Ensure that the surface is smooth and flat for accurate hardness readings. If necessary, use a grinding or polishing tool to prepare the test surface.



Step 5: Perform the Hardness Test

Hold the TIME5100 Leeb hardness tester perpendicular to the test surface. Align the impact device with the desired test location and firmly press the device against the surface. The device will generate an impact force, and the resulting rebound velocity will be measured and displayed on the screen. Ensure that the impact device is perpendicular to the surface to obtain accurate measurements.



Step 6: Record and Interpret the Results

Once the hardness test is performed, record the displayed hardness value. The TIME5100 Leeb hardness tester typically provides measurements in various hardness scales, such as Rockwell, Brinell, Vickers, or Shore. Consult the device's user manual or refer to relevant standards to interpret the hardness value according to the material being tested.



Step 7: Repeat the Test if Necessary

If required, repeat the hardness test on different locations of the material to ensure consistency. Take multiple readings and calculate the average hardness value for a more reliable assessment.



Step 8: Maintain and Store the Device

After using the TIME5100 Leeb hardness tester, clean the device and store it in a safe and dry place. Regularly check the impact device for any signs of wear or damage and replace it if necessary. Follow the manufacturer's recommendations for maintenance and calibration intervals to ensure the accuracy and longevity of the hardness tester.



In conclusion, the TIME5100 Leeb hardness tester is a valuable tool for assessing the hardness of various materials. By following the steps outlined in this article, you can effectively use the hardness tester to obtain accurate and reliable hardness measurements. Remember to always refer to the device's user manual and relevant standards for specific guidelines and recommendations.
